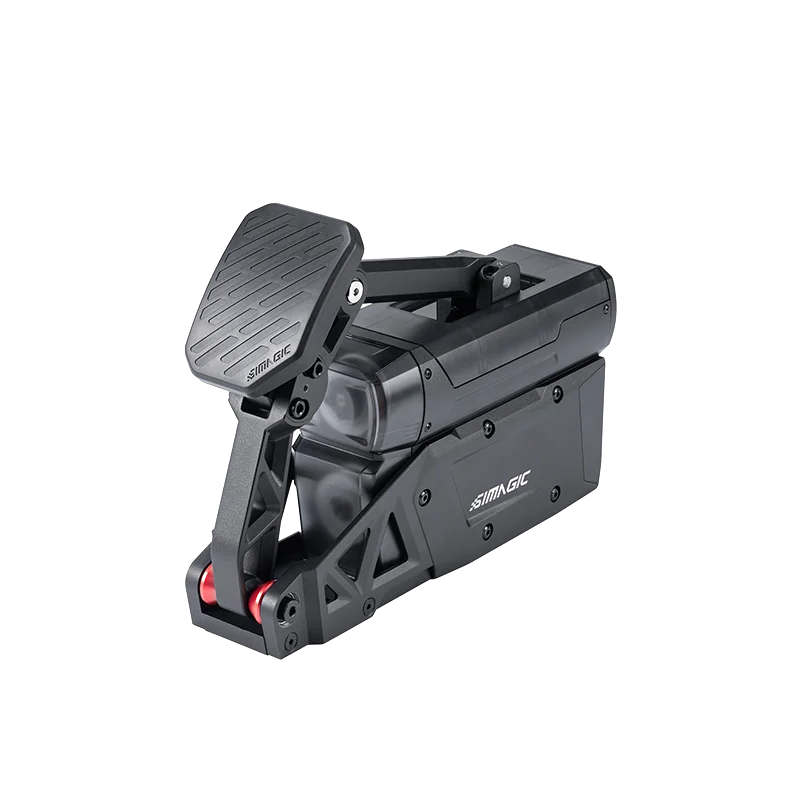

Simagic P-Active Pedal

P-Active — Redefining Pedal Control. A servo-driven active pedal from SIMAGIC that recreates spring, elastomer and hydraulic pedal feel, and turns live telemetry into feedback under your foot.

A pedal that responds to your drive

ABS, traction control, wheel lock, wheel slip, RPM, clutch bite point and gear shifts are felt directly through the pedal, tuned in SimPro Manager.

Every force you apply is accurately detected

Dual 250 kg load cell sensors with a 180 kg software limit, mounted directly behind the pedal face, capture your foot pressure for precise braking input, at 16-bit resolution.

Push forward, control better

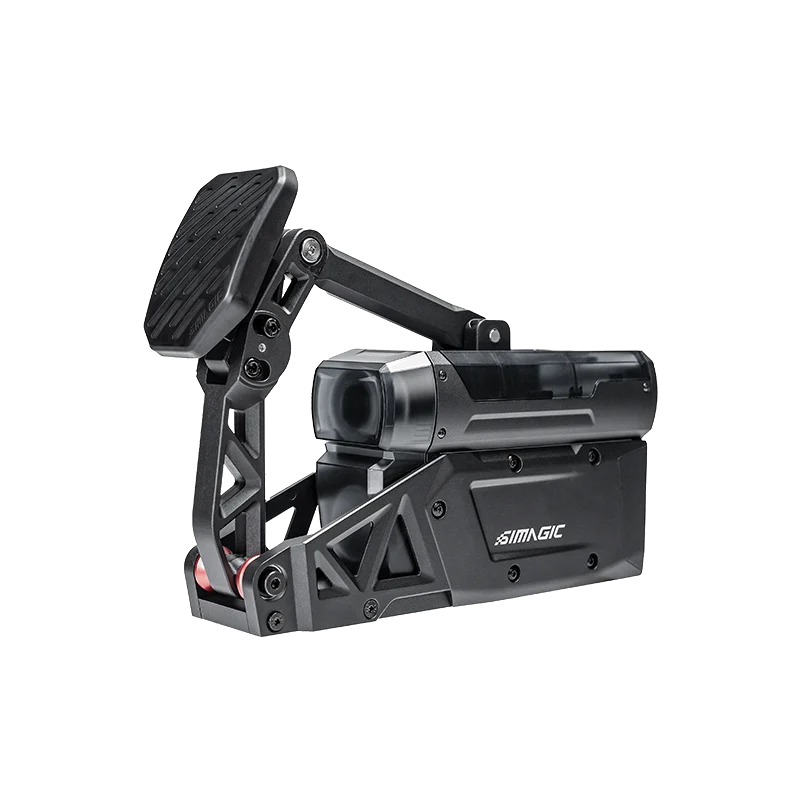

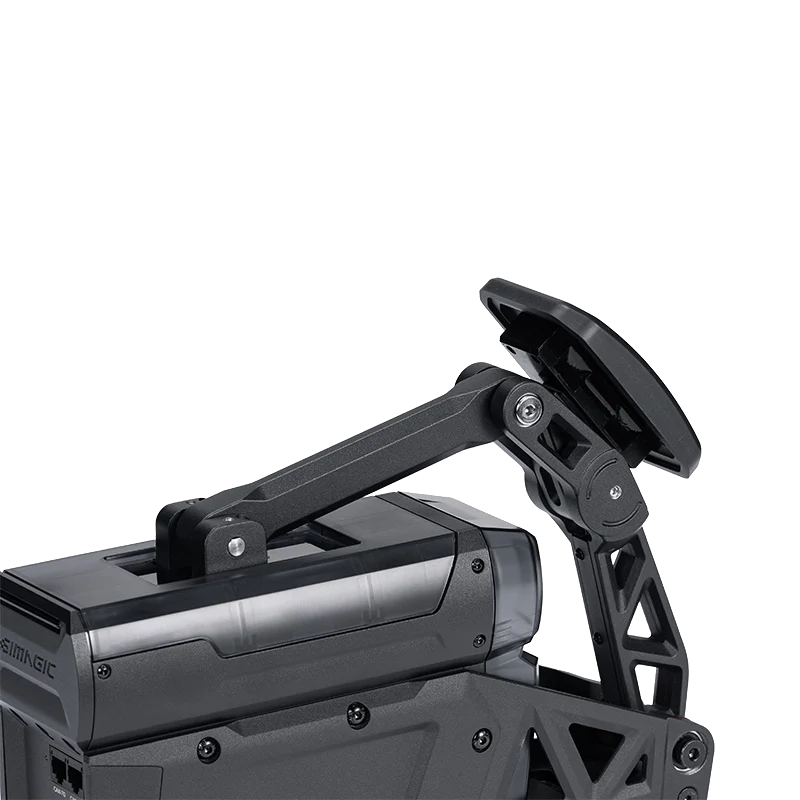

A raised pivot creates a more forward pedal stroke with less ankle rotation, aligning leg force for precise pressure control and smoother release under heavy braking.

100 ms full-stroke return

Full-stroke return in as little as 100 ms. Switch between brake, throttle and clutch modes in software — all with the same hardware.

Build your pedal setup your way

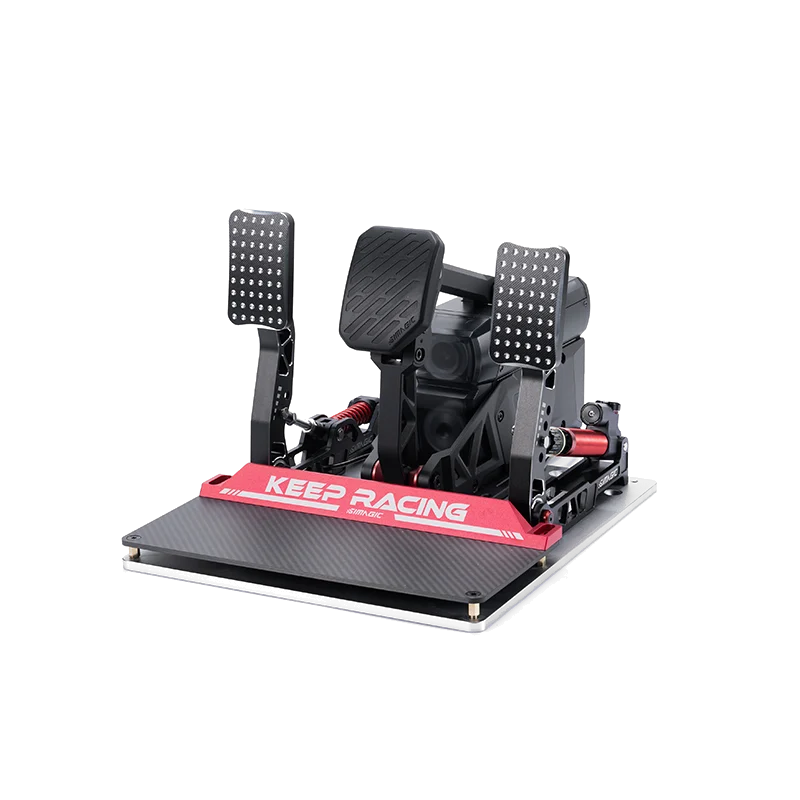

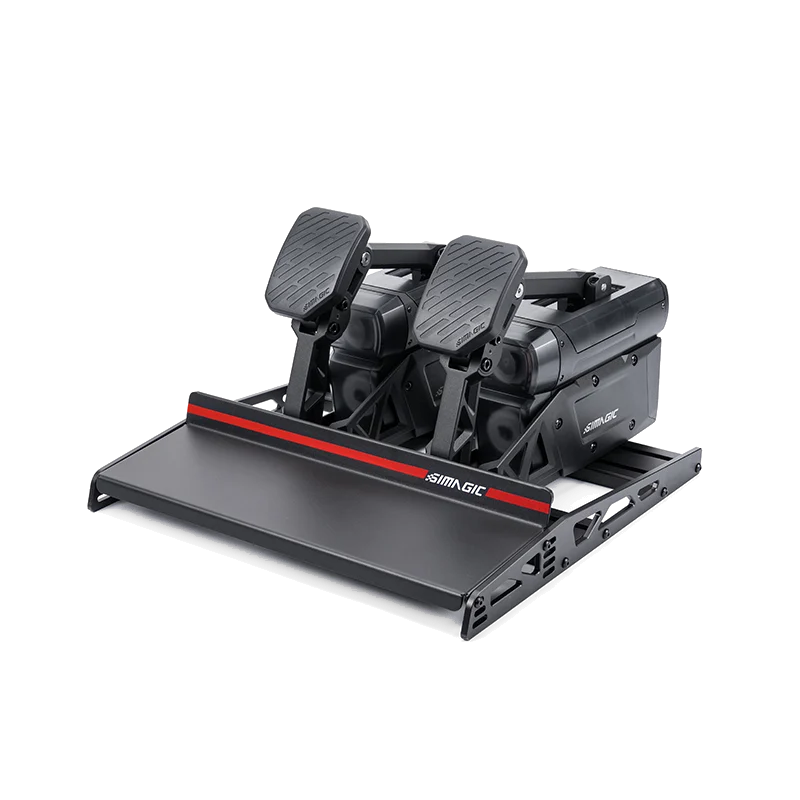

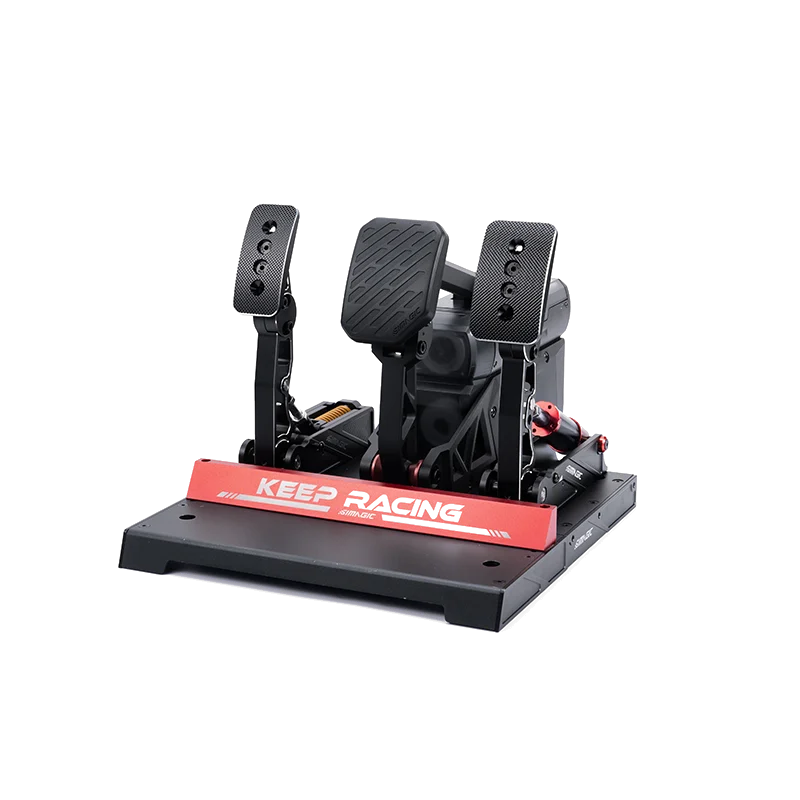

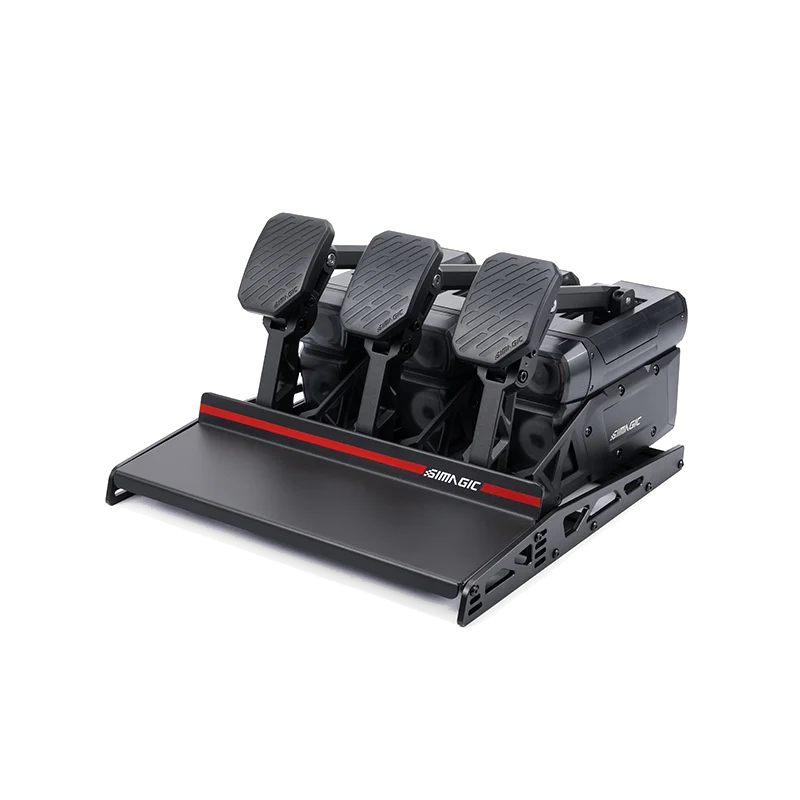

Mount P-Active on an existing SIMAGIC P1000 or P2000 pedal platform, or on the dedicated P-Active Baseplate (sold separately), which supports P2000 pedal faces and third-party throttle and clutch pedals. Start with an active brake and expand at your own pace.

Specifications

• Connectivity: PC, SIMAGIC base
• Load cell: custom 250 kg dual sensors
• Sensor resolution: 16-bit
• Power supply: DC 48 V / 8.3 A (max 398 W)
• Pedal surface: aluminium alloy, rubber
• Adjustable travel, angle / position, linearity, force and deadzone
• Control box: included
• Materials: CNC aluminium alloy, PC, rubber
• Dimensions (L × W × H): 335.9 × 87 × 241.5 mm
• Net weight: 6.12 kg

In the box

• P-Active
• P1000 adapter kit
• P2000 profile adapter kit
• Screw kit
• Cable kit
• Quick guide
• Stickers

Optional accessory: P-Active Base Plate.
